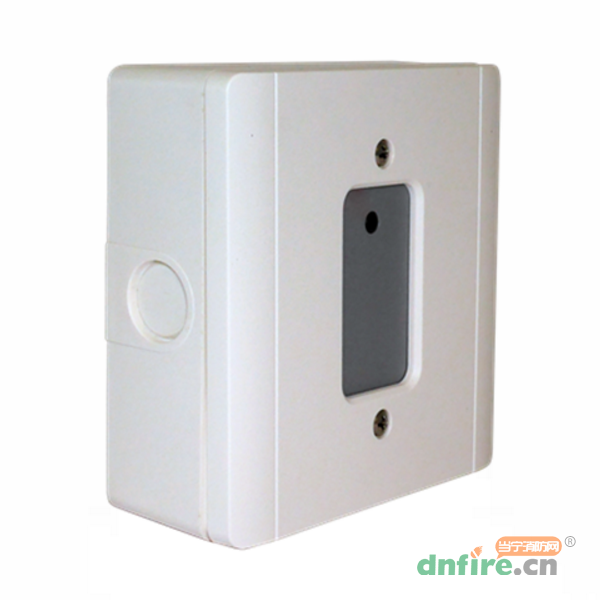

美安Maple Armor FW841 CONVENTIONAL ZONE MODULE
¥0.0媒體價 登陸后可見 市場價 詢底價
美安Maple Armor 產品32件 進入品牌專區 1人 關注
熱度
圖文詳情 產品參數 評論 文章

年中大促

  The FW841 conventional zone module is intended to allow Maple Armor intelligent fire alarm control panels to interface and monitor 2-wire conventional detectors in retrofit applications.

  The initiating zone can support a mix of 2-wire conventional automatic detectors as well as normally open dry contact alarm initiating devices such as mechanical heat detectors and manual stations.

  The Initiating Zone power can be derived either from the SLC loop or be provided by an external UL/ULC listed 24VDC power supply.

SPECIFICATION

SLC Nominal Voltage 24VDC
SLC Voltage Range 15 to 28VDC
SLC Standby Current 10mA
SLC Active Current 31mA
External Nominal Input Power Voltage 24VDC
External Input Power Voltage Range 16 to 28VDC
Max.Line Impedance(Output) 50Ω
Max.Impedance for Grounding 6.6 KΩ
Compatible EOLR 2K to 50KΩ
Operating Temperature 32°F to 120°F(0℃ to 49℃)
Operating Humidity 0%to 93%RH
Mounting FW800 base
Dimension 120 mm(L)x 120 mm(W)x 45 mm(H)
Weight(with backbox) 8.7 oz(247 g)
Wiring Gauge 12 to 18 AWG
