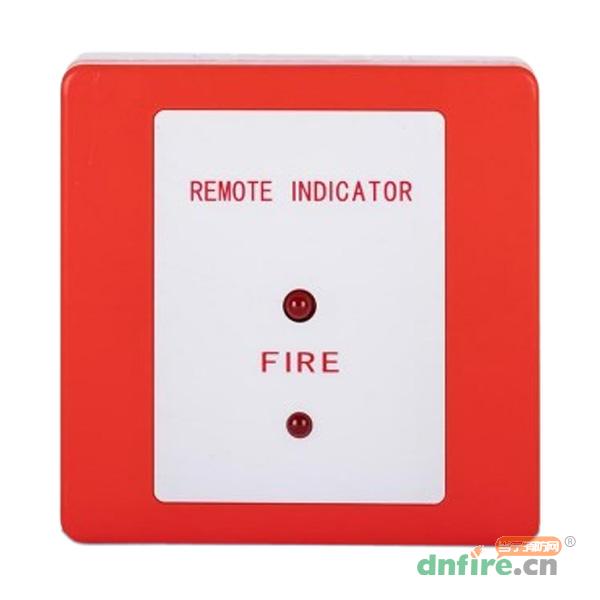

TCZS5274 detector remote indicator light (hereinafter referred to as the remote indicator light) is mainly used in thealarm system requiring the bus connection, and can be used with the JTY-GM-TC5161 smoke detector. When the inlation position of the site detection equipment is not easy to observe the alarm state, it can cooperate with the remindicator light to observe the alarm state easily, to remind the site staff to pay attention, so as to better control the situation.
1.Two-wire connection with external equipment,convenient on-site wiring
2.Work stable and reliable,and have a good ability to inhibit electromagnetic interference;
3.No coding,installation is easy
| Working voltage | DC12.6V~DC24V |
| Working current | 1.2mA~4mA |
| Indicator light | Red: Work is often light |
| Using environment | Type: indoor atmospheric pressure: 86kPa~106kPa Temperature: 0℃ ~ + 50℃ relative humidity: ≤95%, non-condensing |
| Dimension | 86mm×86mm×47mm |
| Shell material and color | ABS, white |
