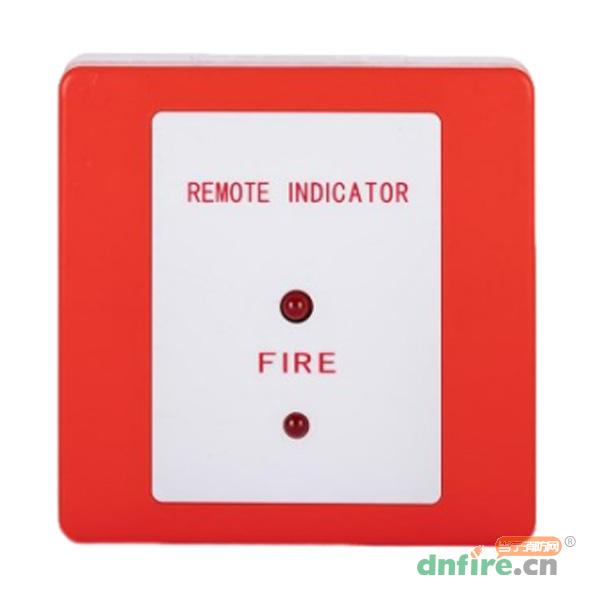

TCZS5273 Detector remote indicator light(Hereinafter referred to as remote indicator light)It ismainly used in the bus connection in fire alarm system,It can be used with fire alarm smoke detector,heatdetector andCombination
Heat and Smoke Detector.When the installation position of on-site testing equipment is not convenient to ob-serve the alarm state,it can cooperate with the remote indicator light to lead its alarm state to the positioneasy to observe,prompting the field staff to pay attention,so as to better control the scene situation.
1.Two-wire connection with external equipment,convenient on-site wiring
2.Share the address with the matching detection equipment,specifically patrol the indicator light separate-ly,easy to observe the current state of the equipment;
3.Using microprocessor to realize signal processing,using digital signal to communicate with the controller,the work is stable and reliable,and has a good ability to restrain electromagnetic interference
| Rated operating voltage | DC 24V |
| Working current | Monitoring current ≤0.21mA;Starting current ≤0.4mA |
| Operating Environment | Class: Indoor atmospheric pressure: 86kPa ~ 106kPa Temperature: 0℃ ~ +50℃ Relative humidity ≤95%, no condensation |
| Indicator | green : The fitting equipment shines during inspection Red: the alarm of thematching product is duration bright |
| Encoding method | 4.Electronic encoding method, sharing the same bus coding point withthe matching product, the coding range can be set arbitrarily between 1 and 255. |
| Reset mode | controller reset |
| Boundary dimension | 86mm×86mm |
| Shell material and color | ABS, white |
