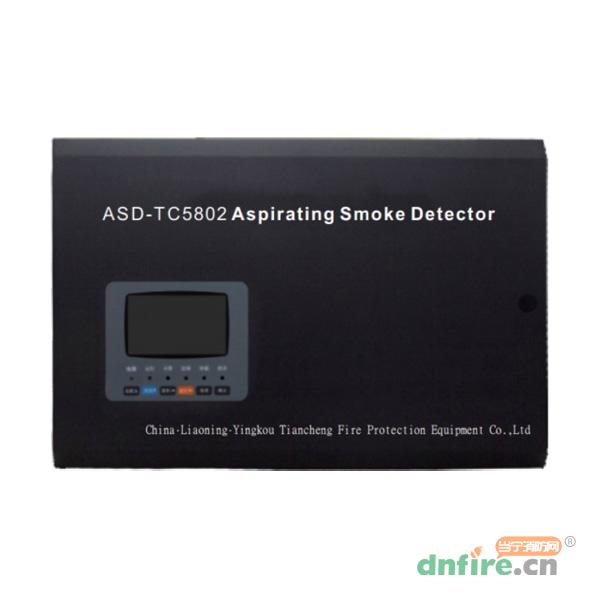

Aspirating smoke detection system；
Aspirating smoke detector is also called air sampling smoke fire detector orearly fire detector,which is to analyze the air in the protected area throughthe air sampling tube to carry out early warning of fire.
Adopts advanced gas detection technology,laser optics technology andmicroprocessor control technology,combined with high-end smoke smell sampling detection and alarm device.
Detection and alarm in Very Early Stage of Fire(overheating,smoldering,orgeothermal radiation and aerosol generation stage).to protect the loss anddamage as much as possible.
Color LCD,fixed keypad;
Metal case,wall-mounted installation;
Max 4 zones;
Detecting type:Smoke concentration
Independent 24V Power supply,or connected to FACP;
Independent alarm function,can connect to FACP;
One zone with one address,FACP could identify;
Modular functional and structural Settings;
Approval:CCCF
| Voltage | Loop 24V |
| Standby Current | Power-DC24V Loop:≤ 1mA Bus-Standby≤ 1mA Alarm≤ 1mA |
| Power Supply-Standby | ≤1.8A;Alarm≤2A |
| Relay Output | 1A/24VDC. 1A/120VAC :Interface: Loop RS-485,CAN |
| Info Storage Capacity | 1000 pcs for each of Fire/Fault/Disable log |
| Max. Length of Single Sampling Pipe | 100 meters |
| Operating Environment | -10oC~+55oC;*Humidity: 10%~95%, Non-condensing |
| Dimension | 476mmx125mm×350mm |
